KIRLOSKAR CAST IRON SLUICE VALVE SUPPLIER
RANGE: as per IS 14846 Size 32 to 1500mm (Non Rising & Rising) as per BS 5163 SIZE: 50mm to 600mm (Non Rising) Pressure Rating up to PN 1.6
Features
- Rigid and sturdy design
- Low pressure loss across the valve
- Available in Non Rising as well as in Rising Spindle Type
- Suitable for clear water up to 45 C and 5000 ppm turbidity, other fluids with maximum pressure / temperature conditions within the scope of IS:14846
- Long service life and leak-tightness even after thousands of open / close cycles
Application
- Water works
- Water / Effluent / Sewage treatment plants
- Fire Fighting
- Power
BUTTERFLY VALVE SUPPLIER
RANGE: Conforming to IS:13095/BSEN 593 BS: 5155/AWWA C504 Size 65mm to 3600mm - Wafer/Dual Flanged/Lugged Type ECCENTRIC type Size 50mm to 600mm - CENTRIC type|Pressure up to PN1.6 / Class 250
Features
- Available in Centric Wafer / Lugged design
- Single, double eccentric design
- Bubble tight shut off
- Less wear and tear of seal and longer life
- Self-cleaning and non-jamming seat design
- Low operating torque
- Rigid and sturdy design
Application
- Ideal for throtting as well as isoltaion Power plants
- Water supply and sewage
- Chemical and petrochemical plants
- Water works
- Water / Effluent / Sewage treatment plants
KIRLOSKAR CAST IRON REFLUX (NON RETURN) VALVE SUPPLIER
RANGE: Conforming to IS: 5312 Part - 1 Size 40mm to 700mm Pressure up to PN 1.6
- Swing check type design
- Rigid and sturdy design with minimum head loss
- Long service life and leak-tightness of high order
- Suitable for clear water having turibidity upto 3000 o ppm and temperature of 65 Centigrade (rubber to o bronze / stainless steel seating) and upto 95 Centigrade (Bronze/ bronze, stainless steel / stainless steel seating
Features
Application
- Used in waterworks piplines to reduce water hammer effect
- Preventing back flow of water to the pump
MULTI DOOR REFLUX(Non return) VALVE SUPPLIER
RANGE: Confirming to IS: 5312 Part - 2 Size 500 mm to 1500 mm Pressure up to PN1.6
Features
- Non slam and quick closing characteristics
- Seat rings are fitted with special rivets and carefully machined to close tolerances
- Suitable for clear water having turbidity up to 5000 ppm and temperature of 45 degrees Centigrade
- Rigid and sturdy design with minimum head loss across the valve
- Long service life
Application
- Used in waterworks pipelines to reduce water hammer effect
CHECK VALVE SUPPLIER
RANGE: Confirming to API: 594 Size 50 mm and 1500 mm Pressure rating up to PN16 / CL 300
Features
- Used in waterworks pipeline to reduce water hammer effect
- Prevents back flow of water
- Water supply / irrigation schemes
- Power plants / chemical and petrochemical plants
Applications:
- Kinetic Air Valves are commonly used in air vaunting / air admission services in water pipe line
- These are designed to operate with the floats inside
- Turbine or clear water
- Sewage
AIR VALVE SUPPLIER
RANGE: Confirming to IS: 14845 / AWWA C512 Size 50 to 250 mm - Double ORIFICE type Size 25mm and 40mm - Single air valve Ratings PN 1.0 and PN 1.6
Features
- Double orifice type (small and large orifice), kinetic type
- Single air valve
- Non clogging and self sealing balls for trouble free operation
- Totally tamper proof kinetic air valve series available Suited for turbid or clear water sewage; releasing air when water mains are being filled and admitting air while being emptied
- Cuts loss of water when water mains are full Releasing air accumulated under pressure in pipe during normal conditions
Applications
- Water supply lines / Distribution lines
- Clear water and sewage applications
FOOT VALVE SUPPLIER (Swing Type)
RANGE: Confirming to IS: 4038 Size 50 mm to 450 mm - Cast Iron Size 500 mm and 600 mm - Fabricated Pressure Rating PN 0.2
Features
- Rigid and sturdy design with minimum loss of head across the valve
- Perfectly flat seating surfaces for good sealing
- Preventing entry of foreign body to pump through suction pipe
- Long service life
Applications
- Used in suction side of pump to avoid flow reversal from pump to sump with monobloc pumps

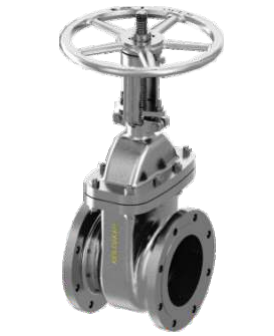

CAST STEEL GATE VALVE SUPPLIER
RANGE: Conforming to API 600 Class 150# sizes 2"(50mm) to 30"(750mm) Class 300# sizes 2"(50mm) to 24" (600mm) Class 600# sizes 2" (50mm) to 14" (350 mm)
Features
- Double flanged / butt weld end, outside crew rising stem,yoke type bonnet
- Back seating bush arrangement to enable repacking under pressure
- Rigid and sturdy design
- Low pressure loss across the valve
- Long service life and leak tightness
Applications
- Naptha and naptha derivatives in oil refineries
- Water, steam, air, gas and liquids having corrosive properties
- Suitable for wide range of working conditions of pressure and temperature ratings

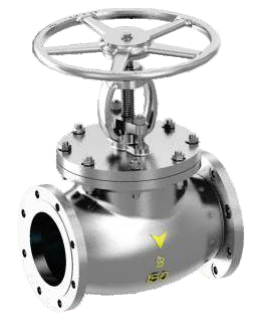

CAST STEEL GLOBE VALVE SUPPLIER
RANGE: Conforming to BS 1873 Class 150# sizes 1" (25mm) to16" (400mm) Class 300# sizes 7" (25mm) to 16" (400 mm) Class 600# sizes 2" (50mm) to 12" (300mm)
Features
- Back seating bush arrangement to enable repacking under pressure
- Back seating bush arrangement to enable repacking under pressure
- Rigid and sturdy design
- Long service life
Applications
- Naptha and naptha derivatives in oil refineries
- Water, steam, air, gas and liquids having corrosive properties
- Suitable for wide range of working conditions of pressure and temperature ratings

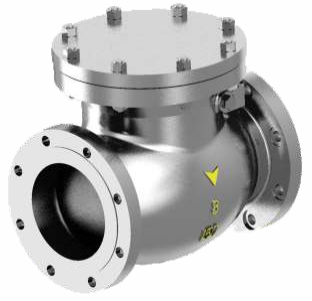

CAST STEEL CHECK VALVE SUPPLIER
RANGE: Conforming to BS 1868 Class 150# sizes 1" (25mm) to 28" (700mm) Class 300# sizes 2 1/2" (65mm) to 28" (700 mm) Class 600# sizes 4" (100mm) to 18" (450mm)
Features
- Swing check type, Double flanged/butt weld end, bolted cover design
- Rigid and sturdy design with long service life
Applications
- Naptha and naptha derivatives in oil refineries
- Water, steam, air, gas and liquids having corrosive properties
- Suitable for wide range of working conditions of pressure and temperature ratings

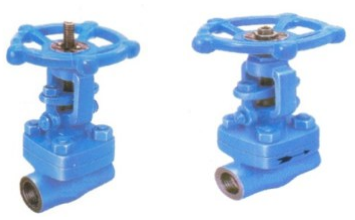

FORGED STEEL GATE VALVE SUPPLIER
Conforming to API 602/BSEN 15761 (BS:5352) standards RANGE: Size 1/4" (8mm) to 2" (50mm) Pressure Class 800#
Features
- Outside screw and yoke type bolted bonnet construction
- Rigid and sturdy design
- Long service life with leak tightness Back seating surfaces provided integral to bonnet
- Ends - socket weldable / screwed
Applications
- Refineries and Petrochemical Industries
- Fertilizer Plant
- Themal Power Plant
- Other Process Industries
FORGED STEEL GLOBAL VALVE SUPPLIER
Conforming to BSEN 15761 (BS:5352) RANGE: Size 1/4" (8mm) to 2" (50mm) Pressure Class 800#
Features
- Outside screw and yoke type bolted bonnet construction
- Rigid and sturdy design
- Long service life with leak tightness Back seating surfaces provided integral to bonnet
- Ends - socket weldable / screwed
Applications
- Refineries and Petrochemical Industries
- Fertilizer Plant
- Themal Power Plant
- Other Process Industries
FORGED STEEL CHECK VALVE SUPPLIER
Manufactured to BSEN 15761 (BS:5352) RANGE: Sizes ¼" (8mm) to 2" (50mm) Pressure Class 800#
Features
- Piston lift check type incorporating self cushioning effect
- Streamlined flow passages designed to minimize pressure losses and erosion
- Guided piston assuring accurate return to seat ring to achieve leak - tightness
Applications
- Refineries and Petrochemical Industries Fertilizer Plant
- Themal Power Plant
- Other Process Industries

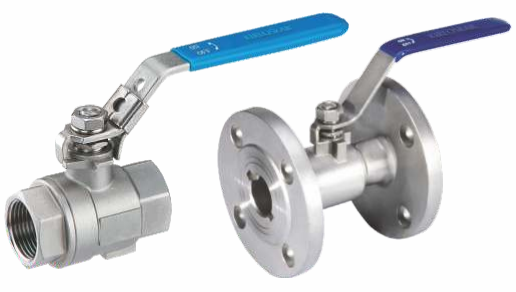

BALL VALVE SUPPLIER
Manufactured to IS:9890 / EN ISO 17292 / (BS 5351) RANGE: Sizes 15 mm to 300 mm Pressure Class 150# and 300#
Features
- Single piece / three piece design, full bore / reduced bore
- Ends - Screwed / Socket weld / Flanged end
Applications
- Refineries
- Fertilizers & Petro Chemical
- Thermal Power Stations
- Process Industries

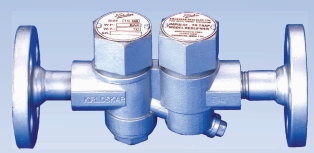

STEAM TRAP DEVICE SUPPLIER
RANGE: Size 15, 20 and 25 mm Max Operating pressure upto 31.64 bar (450 Psig) Max Operating Temperature up to 450 degree centigrade (842 degree Fahrenheit)
Features
- Internationally patented design for minimum loss of live steam
- Multi-concept, high energy saving, efficient impulse cum themodynamic steam trapping device
- Ends - Flanged / Screwed
Applications
- For every industry using steam lines
